Precision wire rod processing molding series
ZCJZ-II

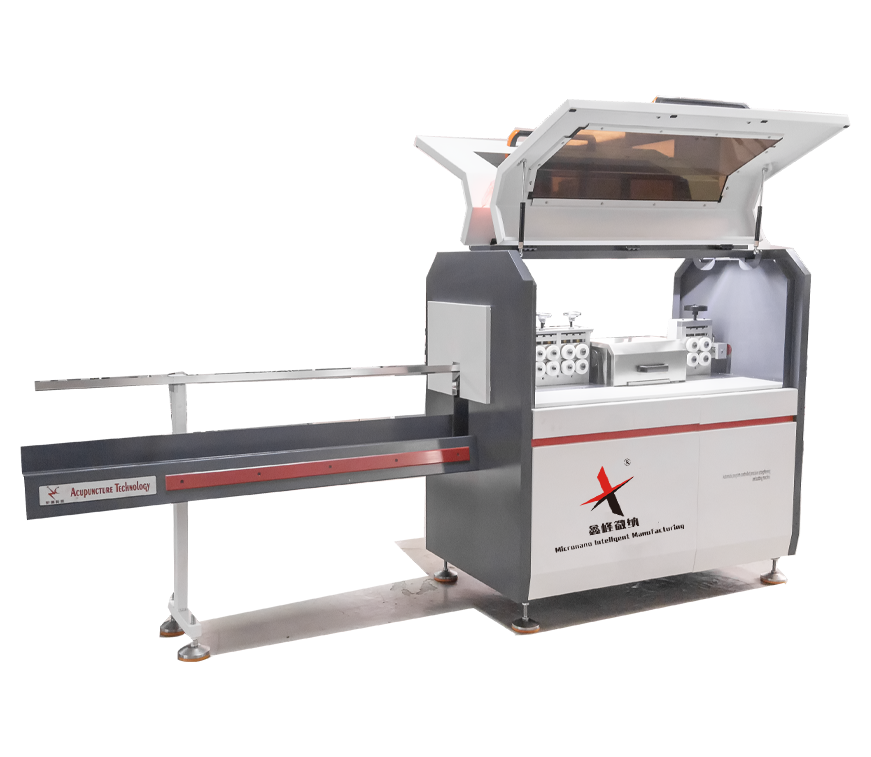

Automatic precision straightening and cutting machine
It is suitable for straightening and cutting of all kinds of precision metal wire and bar in various industries
Product Features
01
Good versatility: Applicable to all kinds of metal wires and capillary (hollow) tube wires such as iron, steel, stainless steel, copper, aluminum, gold, silver, titanium, molybdenum, etc. All kinds of wires are precisely programmed, straightened and cut off for product processing
02
High intelligence: Equipped with a full servo program control system, the equipment debugging process is digitalized. Once qualified parameters are determined, stable production can be achieved. No longer relying on personal touch to debug production, laying the foundation for one person to manage multiple machines.
03
High precision: The equipment has a number of independent patented structures and modules, which ensures the accuracy of precision product production and solves the problems of wire damage, misalignment and large errors in cutoff length that are difficult to avoid in traditional similar equipment.
04
Cost reduction and efficiency improvement: The matching intelligent control wire feeding frame and automatic straightening compensation function realize full-time monitoring of consumable wear and automatic synchronous precision compensation, effectively improving production efficiency and ensuring high-quality product technology. It subverts the complex process of traditional operations and reduces the waste of raw materials.
Technical Parameter
| Equipment/Model | Z CJ Z - Type II | Remark |
| Wire diameter | φ1.0-3.5mm | It varies according to the characteristics and toughness of the silk thread and its cut-off length. |
| Straightening efficiency | 6~30m/min | |
| Length error | ±0.1mm | |
| Oil impurities | Cleanable | Multiple options |
| Abrasive Wipe | have | Multiple options |
| Truncation mode | Intelligent tracking/fixed cutting/top collision | Program-controlled mechanical |
| School 100 E | Automatic compensation | Straightening wheel wear value |
| Degree of automation | Fully automatic | Integrated control center |
| Maximum Power | About 3.8kw | Host power |
| power supply | 380v/50-60Hz | 3P+N+PE |
| Model size | 1630x910x1330mm | Length x width x height mm |
| Weight (approx.) | 430kg | Host |
| Smart control storage rack | Loading 300kg | Auxiliary equipment |
| Automatic landing rack | have | Auxiliary facilities |

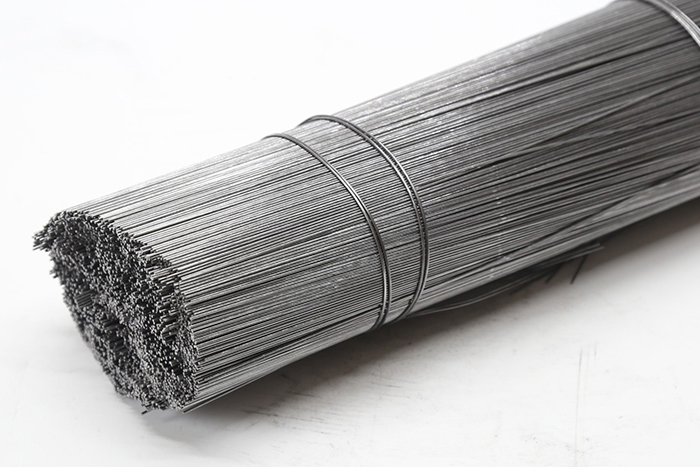

Processing Application
Widely used in aerospace, locomotive accessories, electronic appliances, electric shaft, medical equipment, precision instruments, stationery toys, jewelry and other precision hardware accessories and jewelry material processing
-
01Processing Application
