Acupuncture medical instruments

Acupuncture medical instruments

Industry analysis

Analysis

01 The market for acupuncture medical devices such as syringe needles, biopsy needles, and treatment needles is an important part of the global healthcare industry and is a dynamic and growing field. It is characterized by constant technological advances, regulatory changes, and changing consumer preferences. The growth of this market is driven by several factors, including the aging of the global population, the increasing prevalence of chronic diseases, global vaccination, and the continued demand for enhanced access to minimally invasive surgery.

02 Just taking biopsy acupuncture as an example, the global biopsy needle market size will reach $1.2057 billion in 2023, and by 2031, the relevant tissue analysis predicts that the market size of biopsy needles will reach $2.03526 billion. The compound annual growth rate reached 6.60%. At the same time, as early as 2021, China has become the world's second largest producer of acupuncture medical devices.

03 There are currently two ways to produce high-quality medical acupuncture in China: relying on special processing equipment imported from abroad or using a large number of manual production. Both production modes have the problems of high cost and limited technical input due to the complex international situation, or changes in the form of human resources and large employment gaps. Domestic medical acupuncture enterprises are in urgent need of new medical acupuncture processing equipment and production technology innovation in order to better respond to market demand.

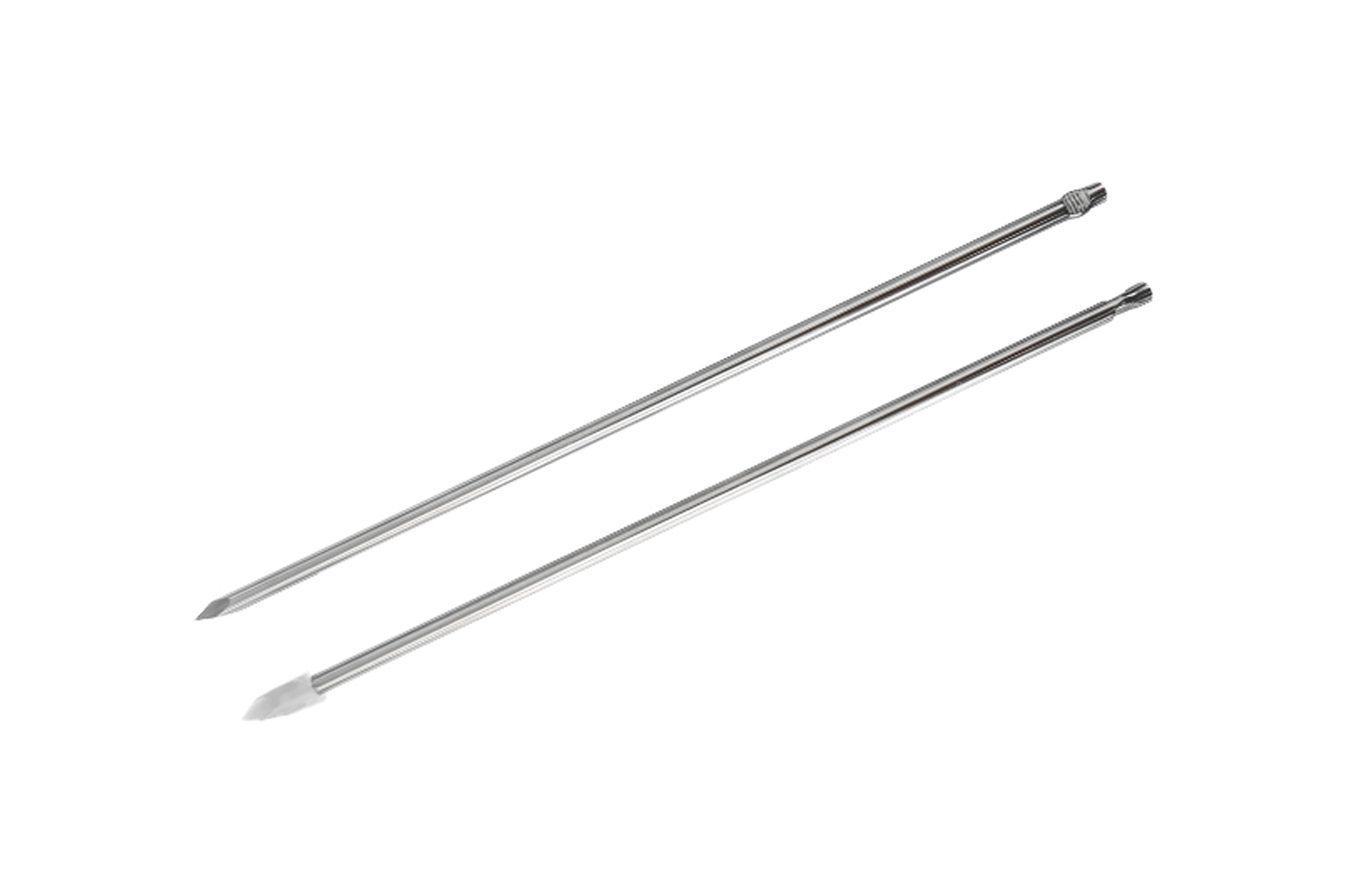

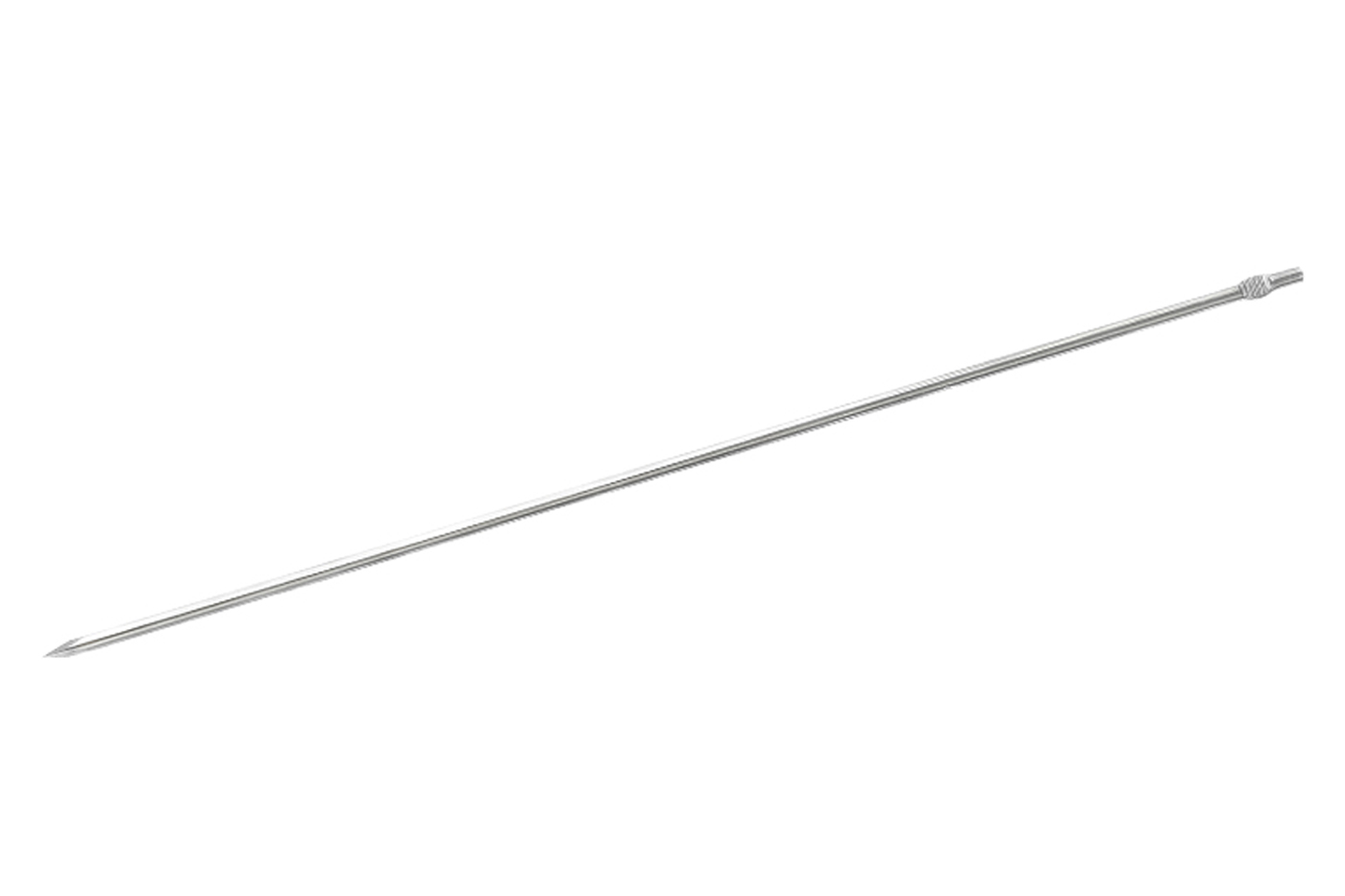

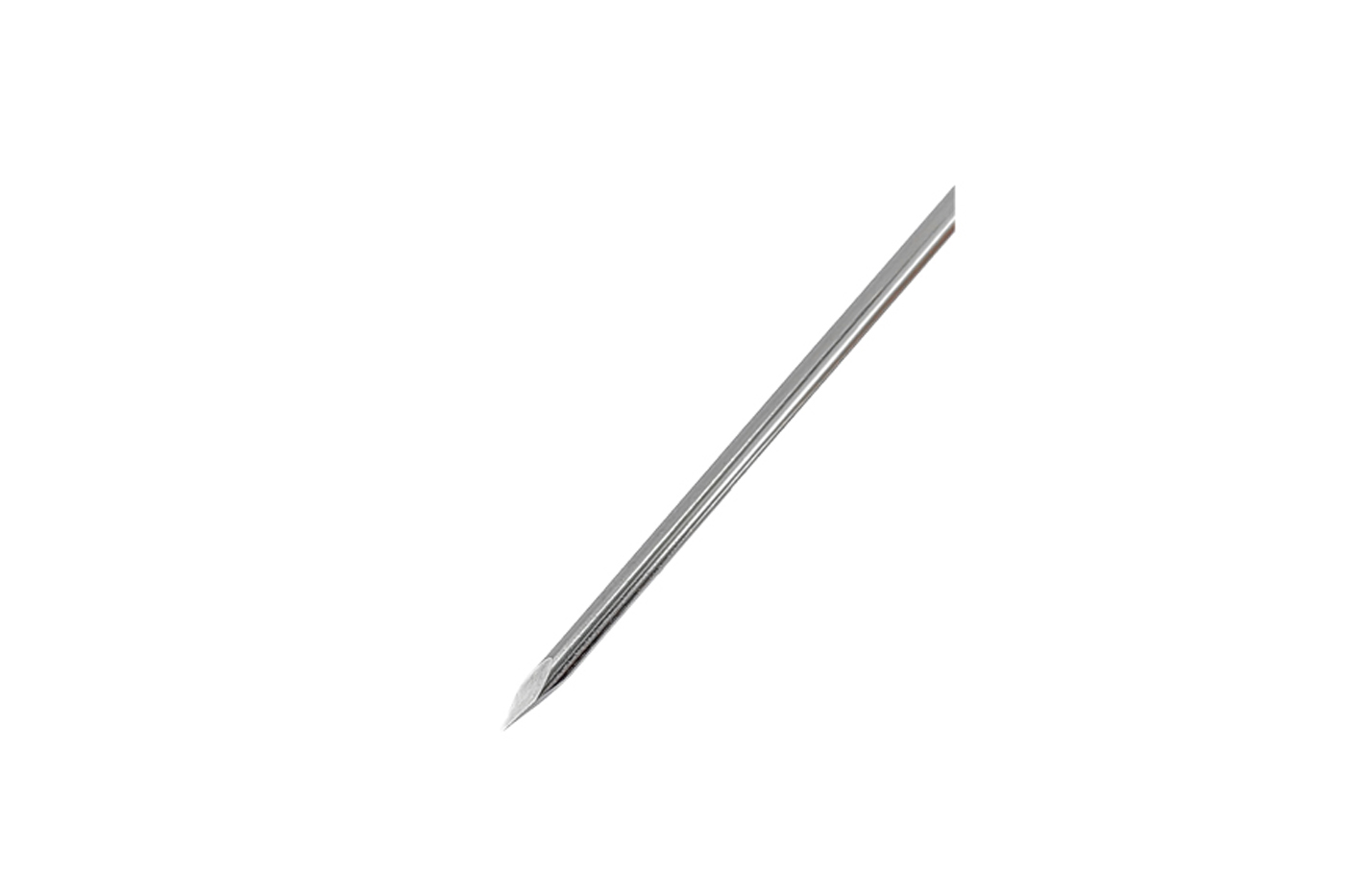

  • Typical machined parts

    Common piercing needle manufacturing process
    • Raw material
    • Straightening truncation
    • Surface grinding and polishing
    • Multi-edge grinding walk
    • Disinfection cleaning
    • package

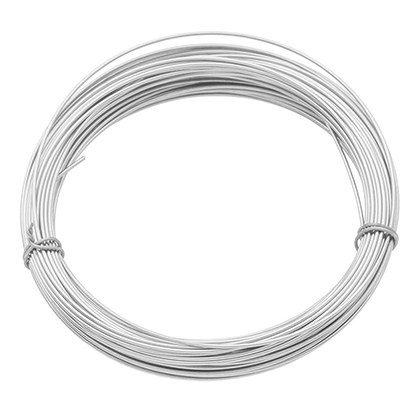

    Raw material
    01
    Straightening truncation
    02
    Surface grinding and polishing
    03
    Multi-edge grinding walk
    04
    Disinfection cleaning
    05

    Equipment Selection

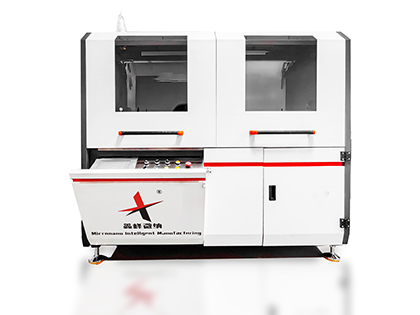

    Straightening and cutting

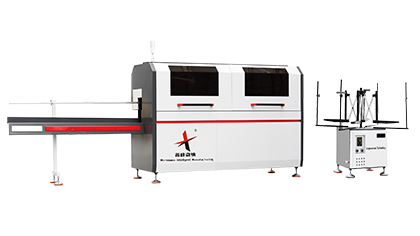

    • Recommended model: ZCJZ fully automatic precision straightening and cutting machine

      Processable wire diameter: φ1.0-3.5mm

      Straightening efficiency: 6~30m/min

      Length error: ±0.1mm

      Oil impurities: can be cleaned

      Abrasive Wipe: Yes

      Cut-off mode: Intelligent tracking/fixed cutting/top collision

      Straightening compensation: automatic compensation

      Automatic degree: Fully automatic

      Maximum power: about 3.8kw

      Power supply: 380v/50-60Hz

      Machine size: 1630x910x1330mm

      Weight (approx.): 430kg

      Intelligent control retractable rack: load-bearing capacity 300kg

      Automatic landing rack: Yes

    Surface grinding and polishing

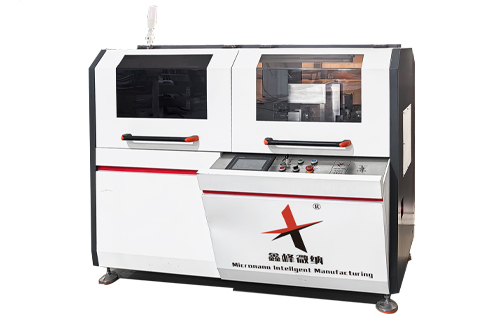

    • Recommended model: YMPG-1500D Fully automatic metal wire surface grinding and polishing machine

      Machinable material:Metal

      Processing product length: 1500MM

      Processing diameter: Φ0.5MM-3MM

      Production efficiency: about 100-600 pieces/hour

      Maximum output: 1~9999、9999

      Maximum power: about 4kw

      Automatic degree: Semi-automatic

      Machine size: about 1800×900×1800mm

      Power supply: AC: 380V/50Hz

      Weight: about 500kg

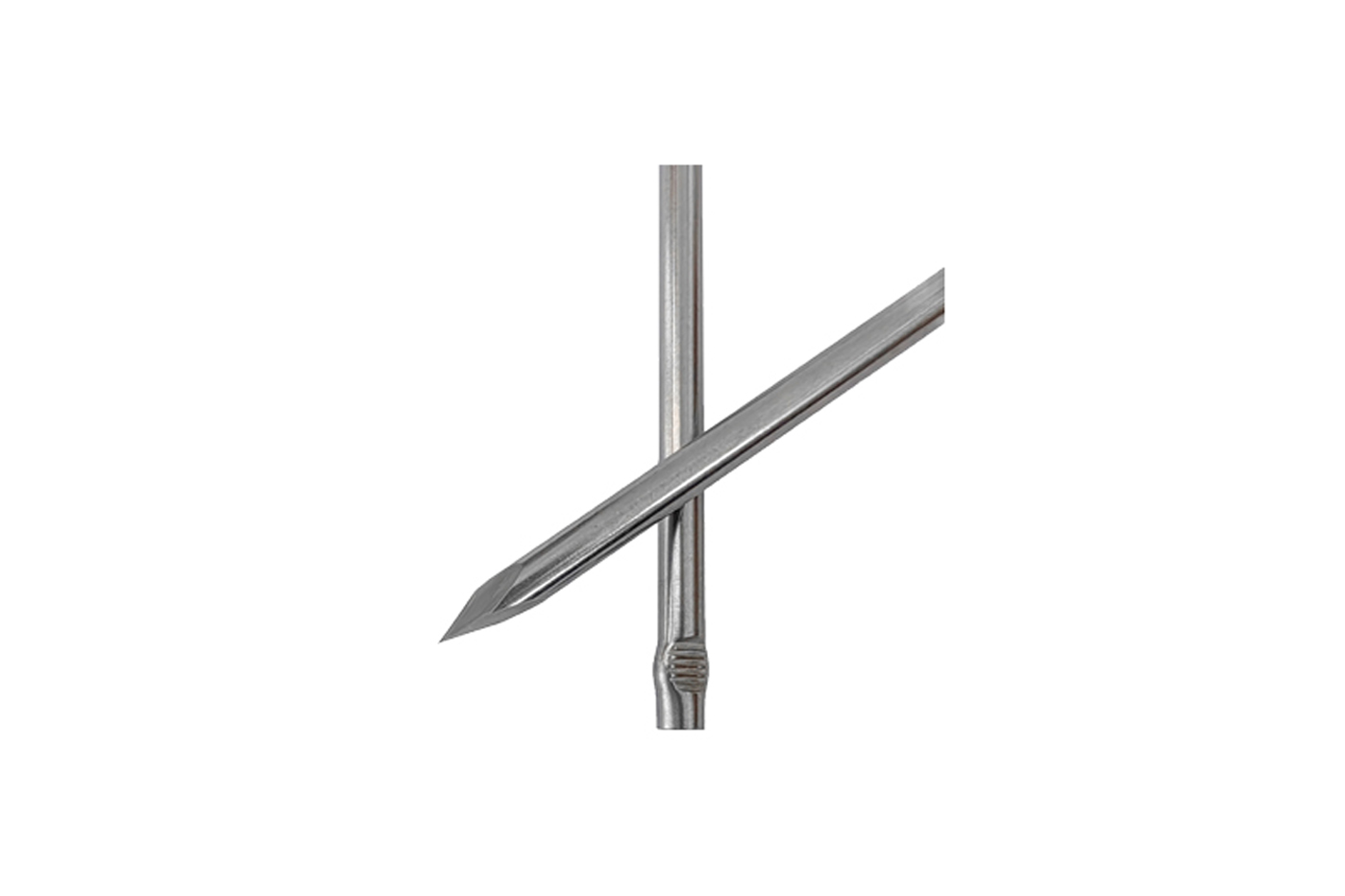

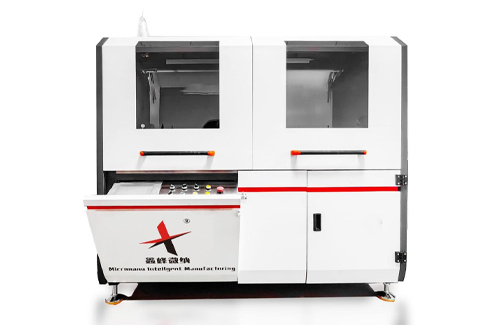

    Multi-edge grinding

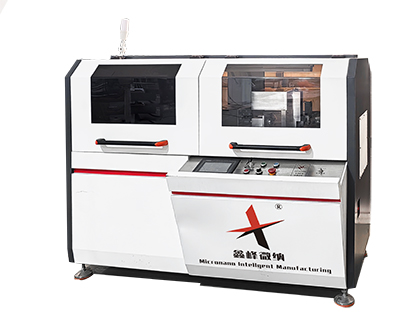

    • Recommended model: JMZX-01 fully automatic precision CNC grinding machine

      Equipment type: Precision CNC grinding machine

      Applicable processing shape: cone or multi-edge

      Processed product diameter: 0.5-1.0mm (solid), 0.5-2.0mm (hollow)

      Processing product length: 5-100mm

      Processing product cone length: 0.1-20mm

      Length error: ±0.1mm

      Processing efficiency: 1-20 pieces/minute

      Grinding loss: automatic compensation

      Maximum power: about 7kw

      Automation degree: fully automatic

      Power supply: 380V/50-60Hz

      Machine size: 1900X1000X1400mm

      Weight: 600kg

      Intelligent control retractable rack: load-bearing capacity 100kg

    Application Cases
