Acupuncture series
ZCM Z 500- I

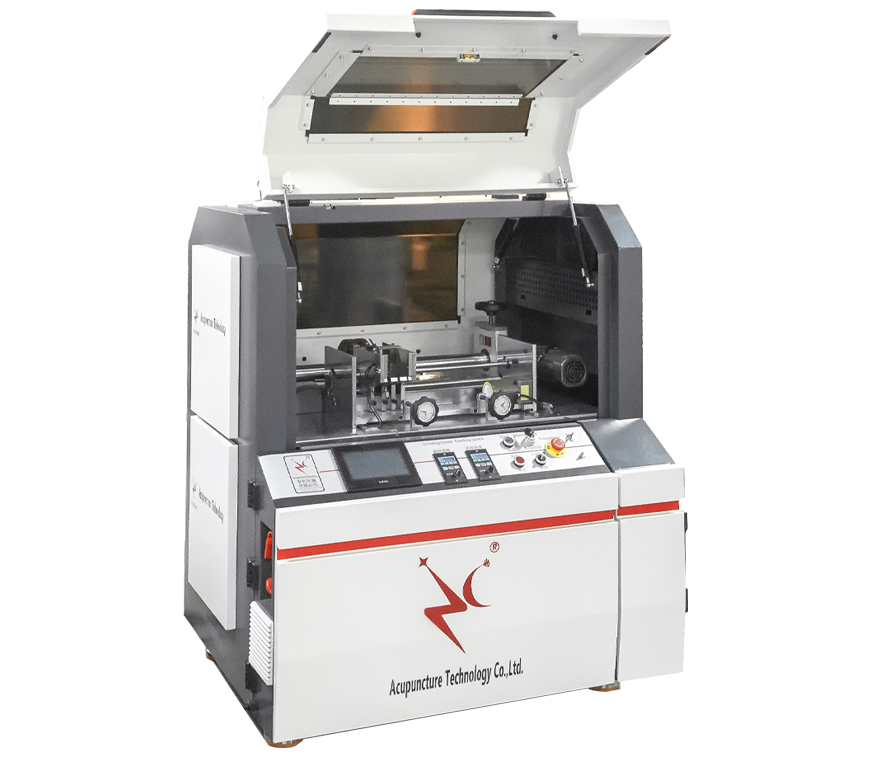

Automatic needle sharpening & chamfering grinder
Product Features
01
Full servo intelligent control: The grinding and feeding mechanisms are all equipped with independent stepless speed change, which can adjust the grinding speed according to the corresponding processing material and wire diameter to achieve the best grinding effect.
02
Wide applicability: Suitable for all metal linear bars, such as iron, steel, stainless steel, copper, tungsten, ceramics, glass fiber, gold, silver, titanium and other metal and non-metal linear bars for sharpening, grinding or chamfering, polishing and deburring.
03
Automatic replenishment and dressing of grinding wheels: According to the wear of grinding wheels in the grinding process, the grinding wheels can be set to track and compensate automatically and automatically dress, correct and level them, which greatly reduces the workload of manual maintenance and ensures that the products are kept at the best quality for a long time.
04
Unique reciprocating grinding function: The equipment has a reciprocating automatic grinding function, so as to achieve a longer linear grinding taper. At the same time, the shape of the finished cone tip is more uniform than that produced by traditional equipment.
Technical Parameter
| Equipment model Grinding material | ZCM Z 500- Type I Metal/Non-metal | Note: Capillary (hollow tube) and others |
| Straight rod length | 40MM-500MM | Adjustable effective range |
| Straight rod diameter | φ0.5MM-10MM | Circle, equilateral rhombus |
| Grinding taper length | 1. 0MM - 50MM adjustable | Depends on the rod diameter and material toughness |
| Grinding taper | 1-45° | Depends on the rod diameter and material toughness |
| Production efficiency | 1-300pcs/min | Depends on the rod diameter and material toughness |
| Grinding wheel wear compensation | automatic | According to the rod diameter and material toughness setting (pieces) |
| Grinding wheel dressing | automatic | Automatic dressing with grinding wheel wear compensation |
| Automatic feeding | have | Automatic material sorting/automatic feeding/automatic aligning |
| Grinding function | have | Ends, needle piercing, cone tip, chamfer polishing, etc. |
| Grinding function | have | Linear reciprocating cycle (long cone tip) |
| Taper adjustment | have | Taper adjustable 0~180 pulse points |
| Dust removal and purification | have | Circulation dust extraction and filtration |
| Maximum output | 1~99999999 | Single measurement |
| Maximum Power | 4kw | Host power |
| Degree of automation | Fully automatic | Integrated control center |
| Model size | About 1310*1060*1380mm | Length*Width*Height |
| power supply | AC:380V/50Hz | 3P+N+PE |
| weight | About 430kg | Complete Machine |
Processing Application
Products are widely used in aerospace, locomotive parts, electronic appliances, electric shaft, medical equipment, precision instruments, toys, stationery, furniture and other precision hardware products industry.
-

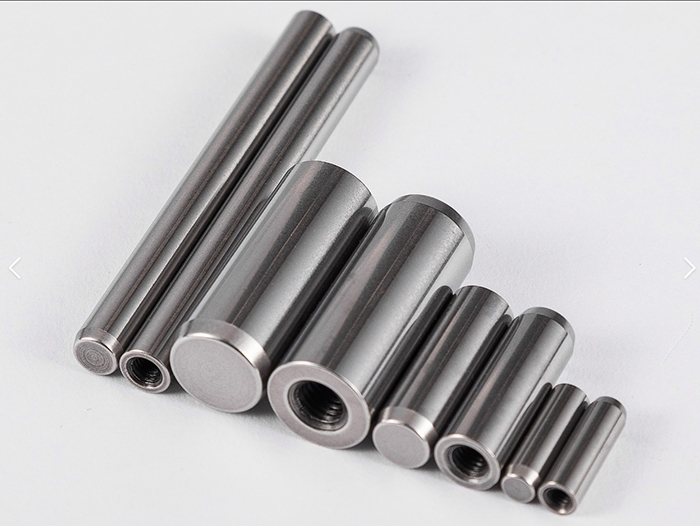

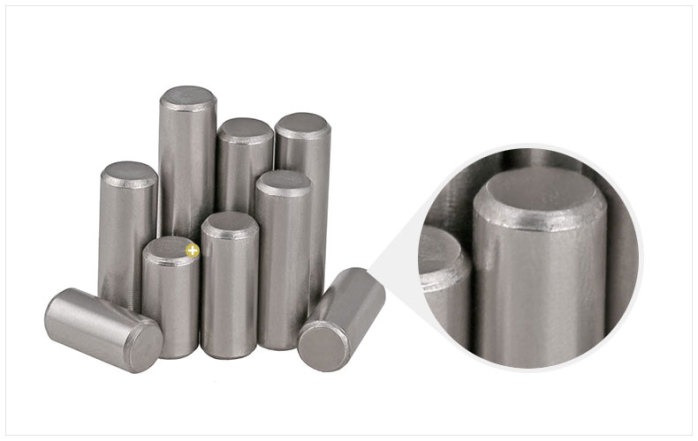

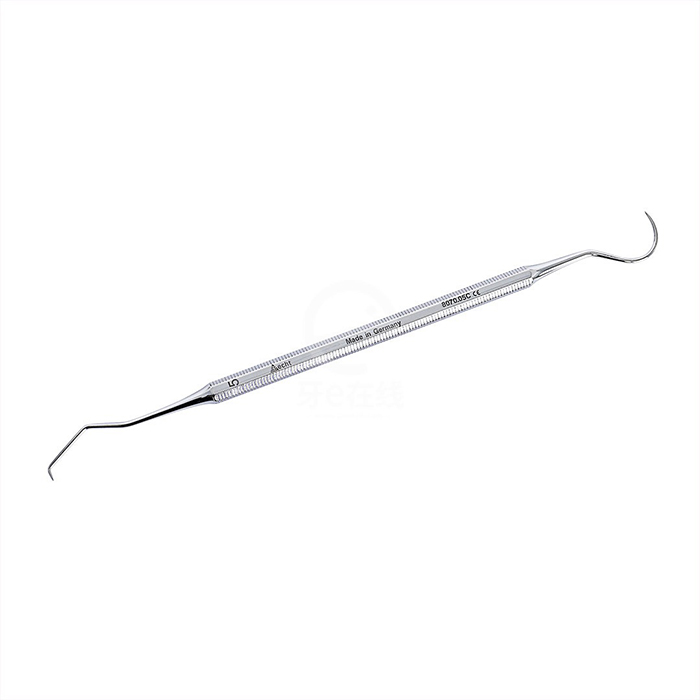

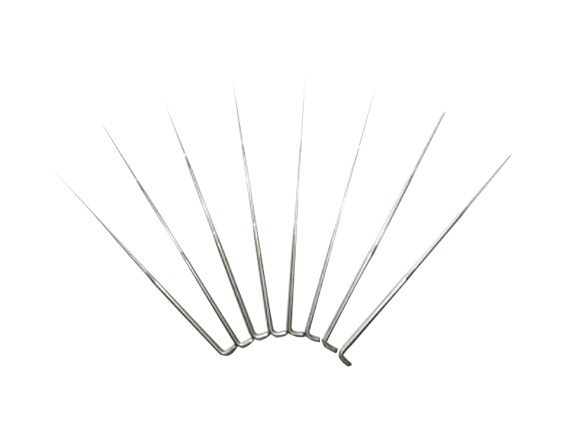

01Pin and shaft chamfering
-

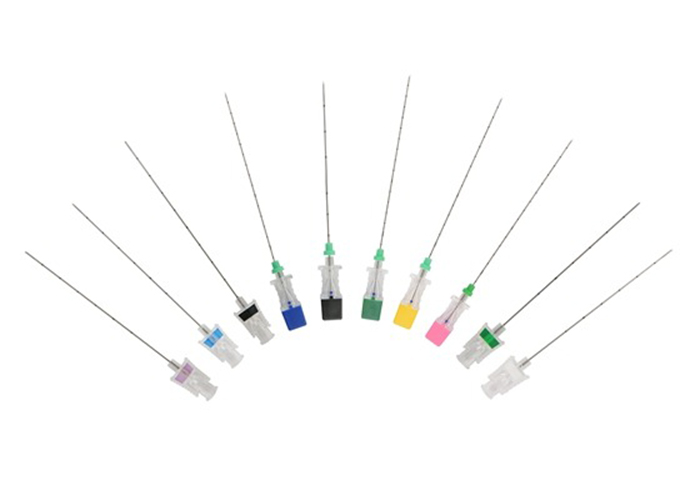

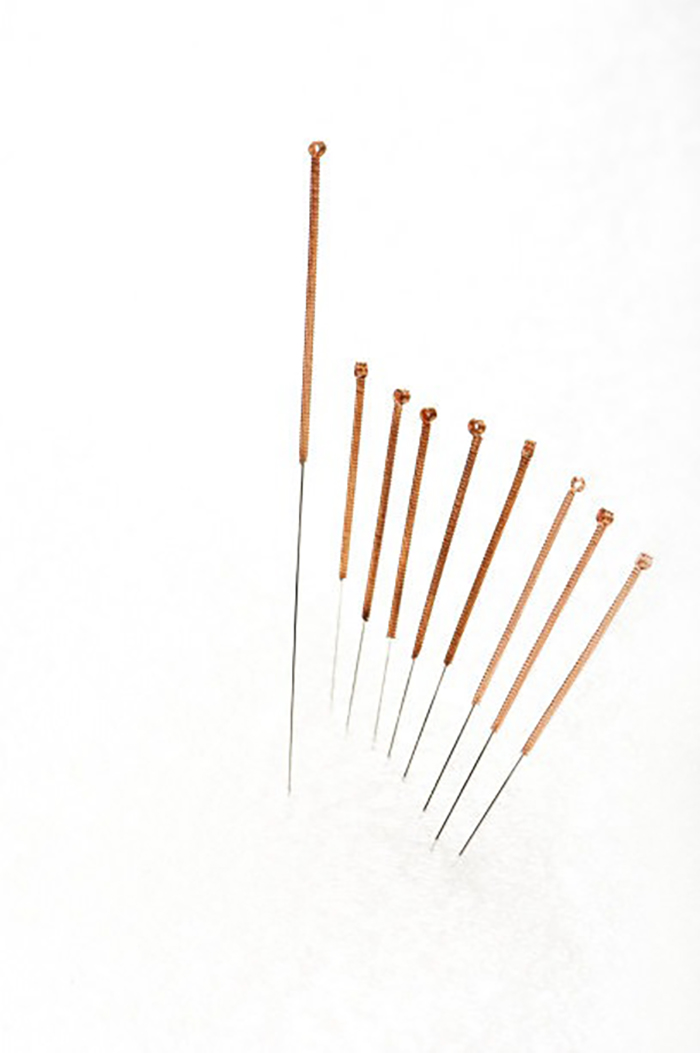

02Medical needles
